1.Principle Introduction
Steel cord wire break detector is an on-line and non-contact detector for wire rope ,which is developed for wire rope manufacturing enterprises.Currently,we have successfully developed the defect detectors suitable for steel wire rope with a diameter of 15mm and below With the product,defects llke wire missing, wire broken,bad twist,wire abnormal and other disadvantages would be effectively detected in the wire rope production process.
2.Product Selection
| Model | Sensor Aperture | Normal Line Speed | Normal Applied Cords Specification | Product Application |
| ZR2010P-FL-TX | 3~15mm | 10-200m/min | 0.3-10mm | Suitable for online detection of wire break, wire missing, and severe stranding defects during production on tube stranding machines, double twisting machines, etc. |
3.Case Studies

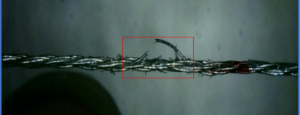

Construction:1*7 Wire diameter:0.434MM Defect:Wire Break |

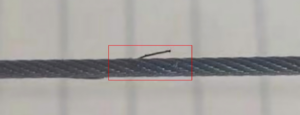

Construction:8*7+1*19 Wire diameter:1.5MM Defect:Wire Break |

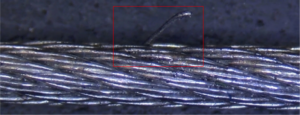

Construction:7*7 Wire diameter:1.5MM Defect:Wire Break |

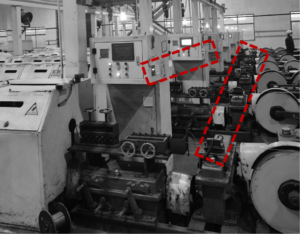

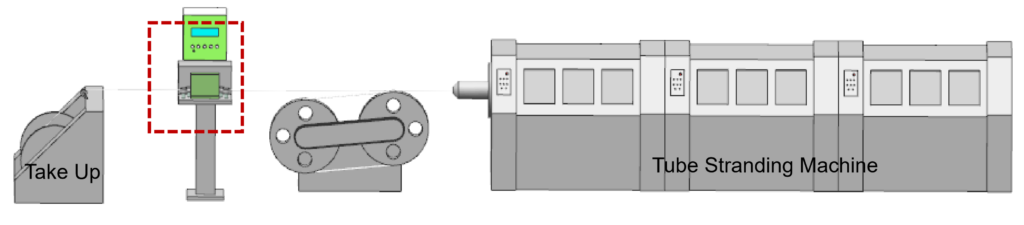

4.Application Case- on Tube Stranding Machine
 |
 |
| Customer Site Application Tracking Summary (Single Case)
Steel Cord Wire Break Detector Model: ZR2010P-FL-TX-7; Machine No.: 35#; Specification: 7*7*22HT 1. After installation, when the polarity sensitivity parameter (P/N) is set within the range of 8-15, it alarms frequently. Some alarms are caused by bad twisting or wire break, but sometimes, there’s no obvious defect could be found. 2. Setting P/N to 15-20, the device will trigger an alarm for defects such as wire break and sever uneven twisting. 3. Setting P/N to 20-30 leads to stable detections for wire break. Sensitivity worsens beyond 30. 4. Based on the data, a setting of 15-30 is optimal for the on-site production of 7*7*22HT, max 30, meeting production needs. |
|
