1.Product Introduction
This product is designed for online, non-contact inspection on internal take-up machines used by steel cord manufacturers. It utilizes power drawn from the machine itself and wireless transmission between internal sensors and an external instrument, enabling reliable detection of quality defects in steel cords within the enclosed environment of the internal take-up machine.
If quality issues such as wire break occur during the take-up process, the detector will immediately trigger an alarm and send a signal via the instrument to stop the machine.
2.Product Selection
| Model | Sensor Aperture | Normal Line Speed | Normal Applied Cords Specification | Product Application |
| ZR2010P-FL-NB-7 | 7mm | 10-200m/min | 1522W, 3922SW, etc. | Detection of broken wires, missing wires, and severe stranding defects on internal take-up stranding machines. |
| ZR1008P-NB-T-WJ-40 | 7mm | 10-200m/min | 1522W, 3922SW, etc. | Detection of broken wires, missing wires, and severe stranding defects on internal take-up stranding machines. |
3.Application Cases

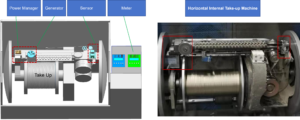

3.1 Horizontal Internal Take-up Machines

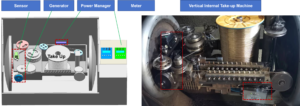

3.2Vertical Internal Take-up Machines
