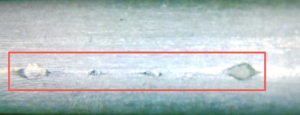

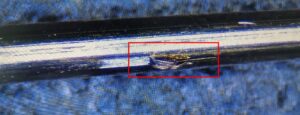

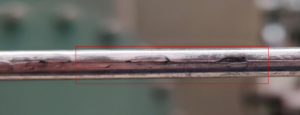

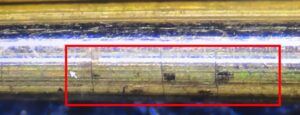

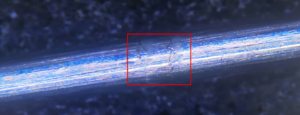

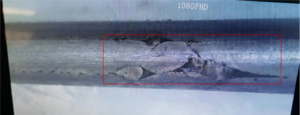

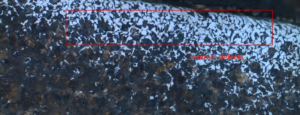

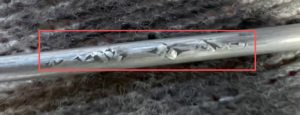

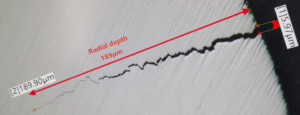

(1) Steel wire defect detector is a new product independently researched and developed by our company in 2019, which is used for online non-contact quality defect detection before beads, hoses, monofilaments and other glossy steel wires, drawing, copper-plating, and glue payment. Through the electromagnetic detection principle, online non-destructive testing of steel wire cracks, dross, surface defects, etc., can be online real-time quality inspection of steel wire.
(2) This product with 485 communication function, can be through the system for data transmission, data graphical display, historical data as a whole, to achieve the centralized and unified management of equipment, with a variety of work modes, convenient, in the detector running process, real-time monitoring of the operating data and the detector status, and data to do the graphical processing, so that customers have a more intuitive product quality of the stability of steel wire products. Understanding. The detection results of this product can meet the standards of different industries, stable and reliable performance, easy to operate.
(3) Steel wire defect detector is different from the traditional eddy current detector, the application of a composite electromagnetic nondestructive testing methods, different from the traditional eddy current detector.
(4) The sensor establishes a magnetic field and detects the magnetic field changes caused by the passage of steel wire. Can detect defects on the surface of the steel wire, steel wire internal defects, as well as changes in the steel wire material, the sensor will convert these magnetic fields into electrical signals, transmitted to the computation center, the computation center to analyze and detect steel wire defects.
1. Introduction of instrument:
(1) Steel wire defect detector is a new product independently developed by our company in 2019. It is used for on-line non-contact quality defect detection of smooth steel wire such as bead, hose, monofilament, drawing, copper plating and rubber application. Through the principle of electromagnetic detection, online non-destructive detection of steel wire cracks, dross, surface defects and other defects, can be online real-time quality testing of steel wire.
(2) This product has 485 communication function, which can integrate data transmission, data graphical display and historical data through the system, realizing the function of centralized and unified management of equipment. It has a variety of working modes, which is convenient and fast. During the operation of the detector, the operation data and the state of the detector are monitored in real time, and the data are graphically processed, so that customers can have a more intuitive understanding of the stability of the quality of steel wire products. The test results of this product can meet the standards of different industries, with stable and reliable performance and convenient operation.
(3) The steel wire defect detector is different from the traditional eddy current detector, and a composite electromagnetic non-destructive testing method is applied, which is different from the traditional eddy current detector.
(4) The sensor establishes a magnetic field and detects the change of the magnetic field caused by the passage of the steel wire. It can detect the defects on the surface of the steel wire, the inside of the steel wire, and the change of the steel wire material. The sensor converts these magnetic fields into electrical signals and transmits them to the calculation center, which analyzes and detects the defects of the steel wire.

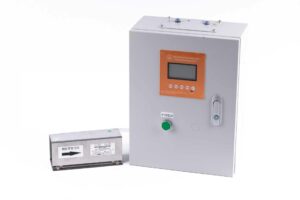

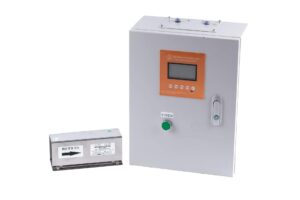

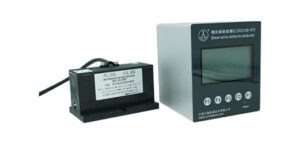

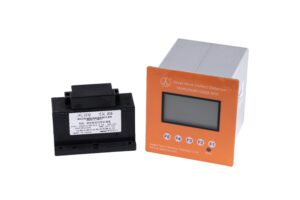

2. Product structure: steel wire defect detection instrument, steel wire defect detection sensor, built-in steel wire defect detection software system.
3. product function: online non-contact detection of steel wire defects generated in the material itself or in the production process.
4. product application range: This product is used in dry stretching machine, electroplating production line, rewinding machine, water tank wire drawing machine, etc.
5. Products advantages:
(1) Stable work, reliable performance, high detection accuracy, strong anti-interference performance, and accurate data;
(2) Excellent product performance, high cost performance, high design accuracy, high reliability, easy to use, and clear readings;
(3) There are Chinese and English displays and two interfaces, which are convenient for users to choose;
(4) It can cooperate with the data platform of Tianrun electromagnetic detection system for data acquisition, graphical real-time display and historical data back check, realizing the function of centralized and unified management of equipment, which is convenient and fast.
6. Quality protection and after-sales business:
From the date of completion of equipment installation and commissioning, as the equipment quality assurance period begins. The warranty period of the equipment by the supplier is one year, and the relevant expenses during the warranty period of the equipment shall be borne by the supplier, and the artificial damage shall not be covered by the warranty. In case of technical problems that the Purchaser cannot solve by itself during the use of the equipment, the Supplier may go to the site upon receiving the request of the Purchaser.
